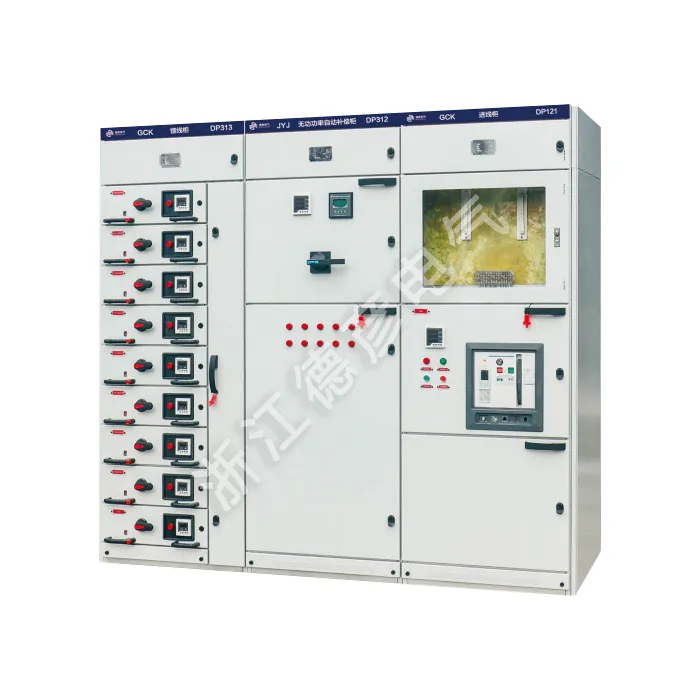

Extractable Switch scrinium Outline per extractionem

Deyan Electric est in supplemento professionalis cum opulenta experientia fabricandi in adjumentis electricis industrialibus. Arca extractable switch Outline by extracting features a modularis draw-out design with rated operational intentione up to 660V. Compartmentalised structura suam operationem tutam efficit, dum normae functiones functiones praebent flexibilem configurationem pro potentia distributionis et applicationes ditionis motoris.

Mitte Inquisitionem

depictio producti

Tabularium extractabile scrinium Outline per extractionem late adhibetur in plantis potentiae, mola metallurgica volubilibus, plantis petrochemicis, levi industria et officinarum textilibus, portubus et navalibus, hotels et hospitiis, etc., ut distributio systematis AC trium phase quattuor-filum vel quinque-filum systematum cum intentione 380V vel 660V, frequentia 50Hz vel motoria, a frequentia 50Hz, motorum vel motorum pensorum, aestimata.

Tabularium extractabile adumbratio per extractionem genus comprehensivum experimentorum subiit et certificationem CCC consecutus est. Summus gradus est arcae switch convenerunt humilem intentionem quae sequentibus signis obtemperat:

National Standard GB7251.1-2005 "Low-Voltages Switchgear clausuras" and International Standard IEC60439.1-1992 "Low-Voltages Switchgear and Control Equipment".

Parameter Product ( Specification )

Categoria	Specification
Basic Parameters
Rated Operational intentione	400V / 660V
Rated Insulation Voltage	690V
Rated Frequency	50Hz
Characteres electrici
Main Busbar Rated Current	≤5000A
Apicem sustinere Current	176kA (pro 0.1s minimum)
Brevi tempore resistere Current	100kA (1s minimum)
Praesidium Degree
Clausura	IP30 (vexillum)
Internum Compartments	IP40 (ad functiones unitates)
Mechanica Properties
Mechanica Vita	Trahere sicco mechanism: ≥1,000 operationes
	Circuitus ruptor: ≥10,000 operationes
Signa Obsequium	IEC 61439-1/2, GB 7251.1
Environmental Conditions
Ambiens Temperature	-5°C ad +40°C
Relativum Umor	≤95% (non-condensatione)
altitudo	≤2000m
Principalis Components
Ambitus Breakers	Compatible cum vexillum causa fingitur circa praevaricatores
Praesidium Devices	Varias subsidia digitales et vigilantia machinas sustinet
Features speciales
Ratio interlocking	Mechanica et electrica interlocks pro tuta operatione
Communicationis	Communicatio interface (Modbus, Profibus)

Product Feature Et Application

Provectus Modular Draw-out Design

Comprehensive Safety Protection System

Princeps euismod Electrical Parameters

Robustus structuralis integritas

Flexibile configurationis Capability

Applicationem Sites

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit
