Aer-Insulated Foedus Switchgear

Deyan Electric professio est elit electrica industrialis cum R&D integratis, productionis et servitii. Core mutandi componentis Air-insulati Compact Switchgear typice utitur pro certo SF6 gasi vel vacuo onere-confracto transitum, quod validum onus-currentis commutationes perficiendi praebet et brevem ambitum faciendi facultatem constantem praebet. Clausura Foederis Air-Insulatae Switchgear construitur e laminis ferreis quali- tatis, adhibitis processibus computatoriis continentibus (CNC) factis, ut robustae mechanicae vires et corrosio resistentia efficiantur. Clavis designationis pluma eximia eius firmitas est. Per intentionem optimized tria dimensiva, multiplices cellulas functiones integrat - inter busbar, switch, funem, instrumentum / cubicula mechanismum operantem - intra vestigium spatii minimi. Hae cellulae a solidis aggeris metallicis partitionibus secernuntur, salus critica quae integritatem perficiat, et vitia internarum propagationem impedit.

Mitte Inquisitionem

depictio producti

AER INSULATUS Foedus Switchgear Foedus Switchgear, a nostro collegio respondens ad vim utentium postulatorum pro firmitate, salute, et firmitate in electricum apparatum, lineamenta aeris insulationem, consilium compactum, plenam proprietatem iurium intellectualem, et genus comprehensivum temptationis. Apta 10kV/7.2kV systemata electrica in aedificiis publicis, structurae residentiales commerciales, industriales et fodiendi sectores fabricandi. AER INSULATUS Foedus Switchgear quoque specimen pro summo voltage motoriis agitatae instrumento mechanico completo solutiones compactas requirens.

Parameter Product ( Specification )

Vide Number	Project	Unitas	Onus Switching scrinium	Combination Electrical Cabinet	Circuit Breaker Cabinet
01	Rated voltage	kv	12	12	12
02	Rated frequency	HZ	50/60	50/60	50/60
03	Ratum current	A
04	Principalis Bus	A	630	630	630
05	Germen Main Bus	A	630	125 (prout fuse aestimatur);	630
06	Rated Insulation Level	kV
07	Virtus Frequency resistere intentione (Phase-ad-Phase et Phase-ad-Erat)	Kv	42	42	42
08	Virtus Frequency sustinere intentionem (Inter Breaks)	Kv	48	48	48
09	Potestas Frequency sustinere intentionem (Imperium et Auxiliares Circuitus)	Kv	2	2	2
10	Fulmen impetus sustinere voltage (tempus-ad-phase et tempus-ad humum)	Kv	75	75	75
11	Fulmen impetus sustinere voltage (inter portus)	Kv	85	85	85
12	Ratum breve tempus sustine Current (r.m.s)	KA
13	Principalis circuitus	KA	20/3S	-	25/2S
14	grounding circuitu	KA	20/2S	-	25/2S
15	Rated Pecco resistere Current (apicem)	KA	50	80	63
16	Rated brevis Circuit Propinquus Current (apicem)	KA	50
17	Rated brevis Circuit Fractio Current	KA	-	31.5	25
18	Rated Transfer Current	KA	-	1700	-
19	Rated activae onus fractionis current	A	630	-	-
20	Rated clausa-loop fractionis current	A	630	-	630
21	Rated cable dato et praevaricationem Current	A	10	-	15
22	Praesidium Rating	Secundus	IP3X	IP3X	IP3X
23	Mechanica vita
24	Onus switch		5000	5000	10000
25	Grounding SWITCH		2000	2000	2000

Product Feature Et Application

1. Foedus et Spatium-Saving Design

2. Usus Aeris Primae Insulation Medii

3. Pretium Efficax ac Commodum Economic

4. Consectetur Salutis cum Robusto interlocking Systems

5. High Reliability et Otium Sustentacionem

Applicationem Sites

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit

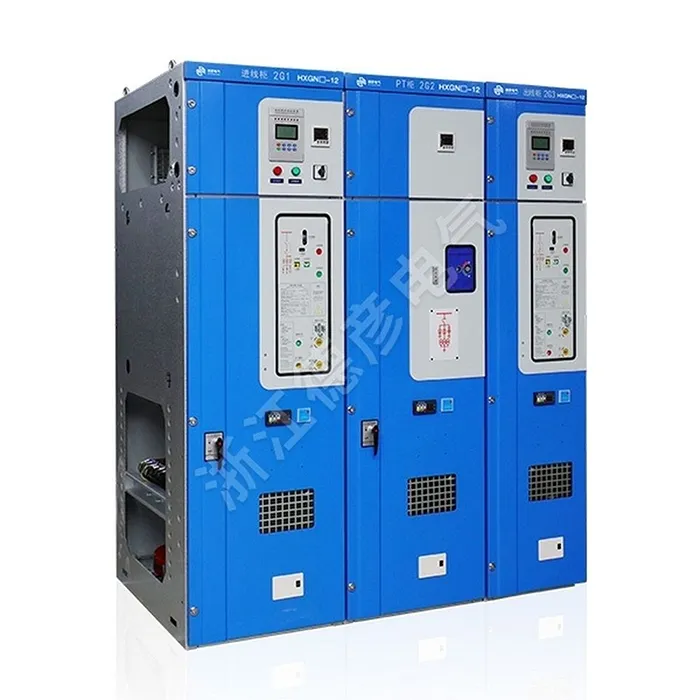

Air-Insulated Compact Switchgear
