Princeps intentione Loci Reactive Power Compensation Fabrica

Deyan Electric professio est elit electrica industrialis cum R&D integratis, productionis et servitii. The High Voltage Local Reactive Power Compensation Fabrica auget eget stabilitatem et potentiam qualitatem per fluxum reactivum dynamice administrandi. Ordinationem intentionis ampliat, damna tradenda minuit, ac facultatem systematis auget per capacitatem latae sententiae/reactoris commutationes vel potentiam electronicarum provectarum.

Mitte Inquisitionem

depictio producti

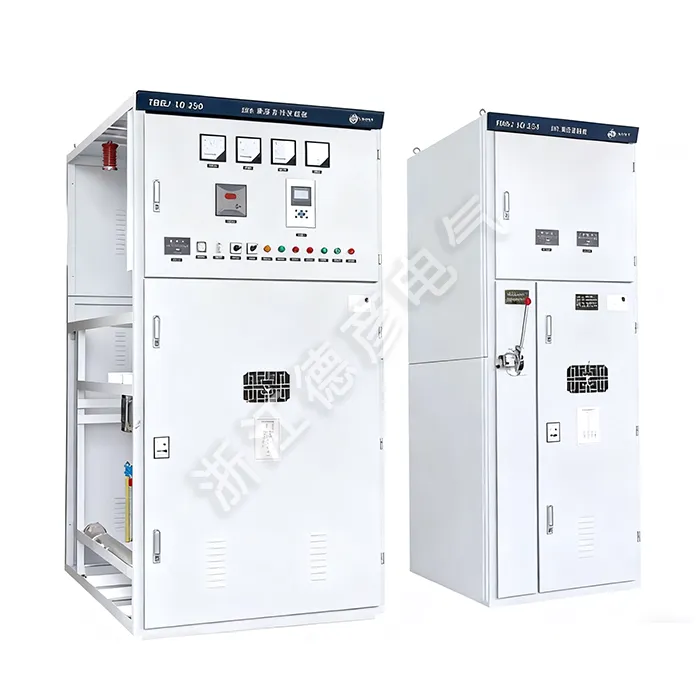

Excelsa intentione Localis Reactiva Power Compensatio Fabrica est 6-10kV/50Hz unitas indooriva tribus-phase motoribus AC designatis. Reactivum potestatem reactivum localem praebet, sponte mutandi capacitores congruentibus cum operatione motore - ineunti in satus et in shutdown disiunctio.

Excelsa intentione Loci Reactiva Virtutis Compensatio Fabrica praebet duas figurationes: versionem simpliciorem cum fuse-protentis directam connexionem ad terminales motores, limitans current ad 90% motoris nullo onere currenti ne auto-excitationis overvoltage (potestatis typicae factor 0.9); et vacui contactoris mutandi exemplar sustinendi facultatem emendandi altiorem, factorem potentiae assequendi supra 0.95. Key beneficia de TBBJ High-Voltage Localis Reactive Power Compensation Fabrica includunt damna potentiae imminutae, qualis voltage melioris, et effectus motoris inceptis auctus, superiori compensatio tradens systemata centralizata comparata.

Parameter Product ( Specification )

Parameter Categoria	Specification
Electrical Ratings
Rated Voltage	6 kv, 10 kV .
Rated Frequency	50 Hz / 60 Hz
Compensation Capacitas Range	100 ~ 5000 kvar (Mos) ;
Euismod
Power scopum factor (post ultricies)	≥ 0.95
Responsio Tempus	Contactor-fundatur: < 100 ms TSC (Thyristor-fundatur): < 20 ms
Switching Methodo	Vacuum Contactor seu Thyristor Switch Module (TSC)
Tutela & Imperium
Imperium Principium	Commutatio automatica cum operatione motorica synchronised; reactivum potentia / potentia factor clausus-loop imperium.
Standard Praesidia	Overcurrent, Overvoltage, Undervoltage, Differential, Overtemperature, Brevis Circuitus
Clavis Feature	Prohibet auto-excitatio overvoltage post motor shutdown.
Communicationis	Libitum RS485/MODBUS-RTU vel Aer/IP
Signa & Environment
Design Standard	GB/T, IEC 62271
Institutionem	Indoor
Ambiens Temperature	-10 °C ad +45 °C
altitudo	≤ M m (Derating supra);

Product Feature Et Application

Certo Localised Compensation

Lorem Synchronised Operatio

Dual configurationis flexibilitate

Auto-Excitatio praeventionis

Significans Energy Optimization

Applicationem Sites

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit

High Voltage Local Reactive Power Compensation Device
