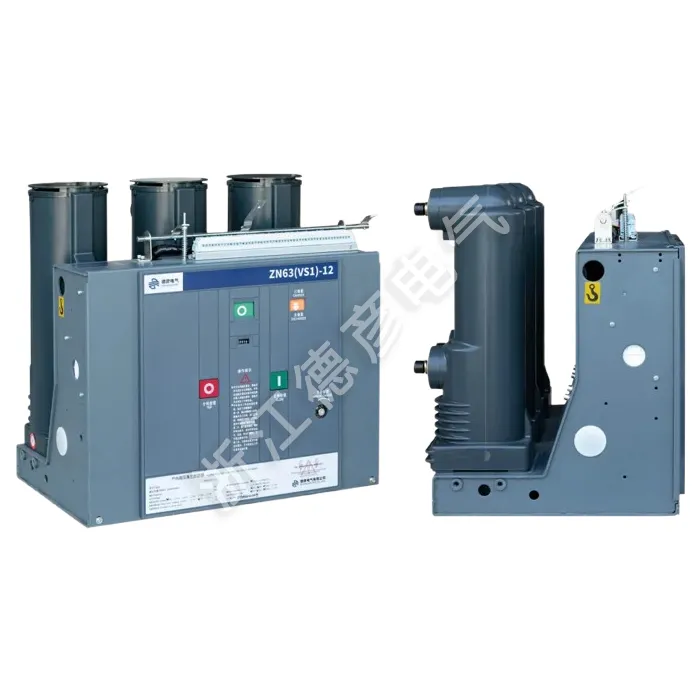

Fixum Indoor High-Voltage Vacuum Circuit Breaker

Deyan Electric est in supplemento professionalis cum opulenta experientia fabricandi in adjumentis electricis industrialibus. Fixum Indoor High-Voltage Vacuum Circuit Breaker disposito systemata 12kV. Vacuum interruptionis technologiae adhibitis provectis, certas venas fractionem, minimam sustentationem et salutem auctam efficit. Foedus et versatile, est specimen potentiae distributionis et tutelae in variis applicationibus industriae et utilitatis.

Mitte Inquisitionem

depictio producti

Fixum Indoor Vacuum Circuitus Breaker tria phase AC 50Hz, 12KV indoor switchgear. Apta est ad regimen et tutelam inceptis industrialibus, potentiae plantae, substations, et electricae facultatum, et ad frequentes sites operationis apta est. Mechanismus operans et ruptor corporis ambitus integrantur. Designari potest ut certae unitatis institutioni vel mechanism actui dicato instrui ad unitatem perscriptorem ad usum formandum. Pars maxima circuii Indoor Vacuum Fixarum Circuit Breaker firmatum polum terminalem integralem solidificatum amplecti potest ad minuaturizationem, altam firmitatem, et conservationem liberorum ambitus ruptivi. Ornare potest cum KYN28-12(GZS) genus repositoria mediae insculptae perscriptorem-type switch, et genus fixum etiam in XGN fixa-type repositoria switch adhiberi potest.

Parameter Product ( Specification )

Vide Number	Nomen		Unitas	Data
1	Rated voltage		kV	12
2	Maximum operating voltage		KV	12
3	Ratum current		A	630 1250	630 1250 1600 2000 2500 3150		1250 1600 2000 2500 3150 4000
4	Rated brevis Circuit Fractio Current (Rated Scelerisque Stabilitas Current - RMS)		KA	20/25	31.5		40
5	Rated brevis Circuit propinquus Current (Peak)		KA	50/63	80		100
6	Rated Pecco resistere Current (Rated Dynamic Stabilitas Current - Pecco)		KA	50/63	80		100
7	4S Rated brevis Circuit sustine Current		KA	20/25	31.5		20/25
8	Rated Insulation Level	Opus intentione resiste (ante et post Rated Breaking) / I min Power Frequency intentione resiste	KV	Ground 42 (Break 48)
		Noli sustinere intentione (Ante et post Rated Breaking) / Pecco Rated fulgur impetus sustinere intentione		Ground 75 (Break 85)
9	Rated scelerisque tempus		S	4
10	Rated Sequentia Operating			Separate -0.3S - Combinatae -180S - Combinatae
11	Mechanica vita		Secundus	20000
12	Rated brevis Circuit Fractio Current Number Fractisque		Secundus	50
13	Operans Mechanismus Rated propinquus intentione (DC)		v	AC、DC 110,220
14	Operans Mechanismus Rated Opening intentione (DC)		v	AC、DC 110,220
15	Contactus gap		mm	11±1
16	Overstroke (compressionem contactum ver longitudo)		mm	3.5±0.5
17	Tres tempus claudendi et aperiendi REPENTE tempus		ms	≤2
18	Contactus currentis tempore in clausula		ms	≤2
19	Mediocris dictas celeritas		m/s*	0.9~1.2
	Mediocris celeritas claudendo		m/s*	0.5-~0.8
20	foramen tempus	Ad maximam voltage operating	S	≤0.05
21		In minimum voltage operating		≤0.08
22	Claudendo tempus		S	0.1
23	Resistentia cujusque periodi principalis ambitus		μΩ	630 ≤50		1250 ≤ 45
24	Licitum cumulativo gerunt crassitudine ad movendum et immotum contactus		mm	3

Product Feature Et Application

Provectus Vacuum Interruption

Certum & Foedus Design

Princeps Safety & Reliability

Vere Operating Mechanismum

Versatile Application Range

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit

Fixed Indoor High-Voltage Vacuum Circuit Breaker
