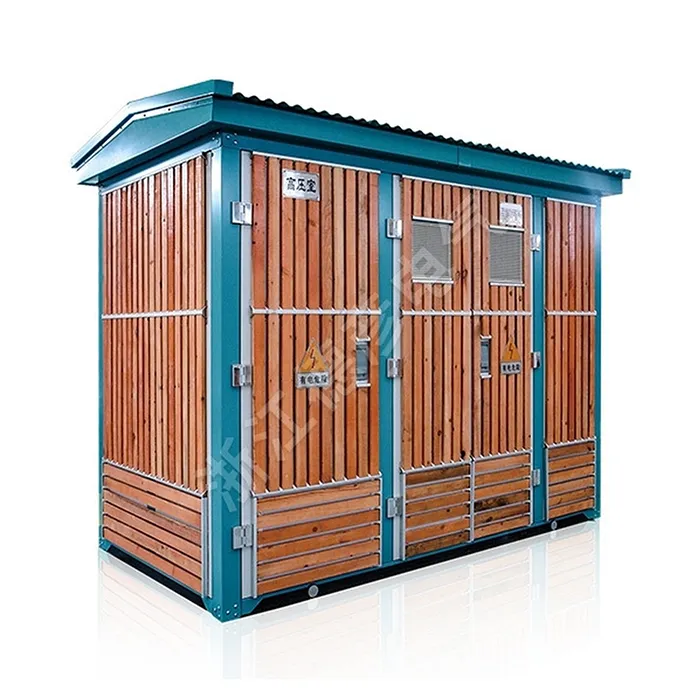

Princeps / Low intentione Prefabricated Substation

Deyan Electric est in supplemento professionalis cum opulenta experientia fabricandi in adjumentis electricis industrialibus. High/low intentione Prefabricata Substantia est pactus, plene conclusus, et solutio probata pro 12kV ad 400V distributionem potentiae. Haec unitas "plug-and-lude" transformator, HV/LV switchgear, et systemata in unam, robustam et weatherproof clausuram integrat. Certam industriam praestat copiam, salutem auctam, ac specimen celeris instituti in applicationibus urbanis, industrialibus et commercialibus

Mitte Inquisitionem

depictio producti

Princeps/low intentione Prefabricata Substatio late in eget upgrades urbanis, communitatibus residentialibus, alta aedificia oriuntur, facultates industriales et fodiendi, hotels, malls, aliquet nisl, ferriviaria, oleum agrorum, navalium, viarum et potentiae temporalis facultates pro applicationibus tectis et velit.

Princeps/low intentione Praefabricata Substatio est plene integrata, compacta solutio ad medium voltage mutandum (v.g., 12kV vel 40.5kV) ad low intentionem (400V). Haec unitas "plug-and-fabula" transformatores, HV/LV switchgear componit, et systemata temperantia in clausura robusta, weatherproof. Certam distributionem potentiam praestat, celeri in-situm instruere cum minimis operibus civilibus, et est specimen industriae urbanae, industriae et renovationis applicationes.

Parameter Product ( Specification )

● Lous Specifications Technical Switch

Vide Number	Nomen	Unitas	FKN12-12 Lond SWITCH	FZN25-12 Vacuum Load Switch
1	Rated voltage	kV	10
2	Maximum operating voltage	kV	12
3	Rated frequency	Hz	50
4	Ratum current	A	630
5	Rated fractionis onus current	A	630
6	Scelerisque Stabilitas Current (RMS)	KA/S	20/2	20/4
7	Dynamic Current stabilitas	KA	50	50
8	Brevis circuitus claudendo current (apicem)	KA	50	50
9	Plena onus fractionis cycles	Secundus	20	10000
10	Mechanica vita	Secundus	2000	10000
11	I min Power Frequency sustinere intentionem (Phase-ad-Phase et Phase-ad-Erat)	kV	42	42
12	Fulmen impulsus voltage (relativi et ad terram)	kV	75	75

● Technicas Specificationes pro Princeps intentione Fuses

Vide Number		Rated Voltage (kV)	Praevaricationem Current (A)	Fractio Current (KA)	Fuse Rating (A)
UK exemplum	Domestic Model	Rated Voltage (kV)	Praevaricationem Current (A)	Fractio Current (KA)	Fuse Rating (A)
SDL※J		12	40	31.5	6.3 10 16 20 25 31.5 40
SDL※J	XRNT-12	12	100	31.5	50 63 71 80 100
SDL※J		12	125	31.5	125

*Nota: Determinatur an percussor inauguratur. N percussorem notat, A significat percutientem praesentem.

Vide Number	Iter Fabrica Type	Rated current iter unitas A	Capacitas solvendi KA (AC 380V)
DW15-630		315,400,630	40
DW15-1000		630,800,1000	50
DW15-1600	Scelerisque electromagneticorum vel electronic	1600	50
DW15-250		1600,2000,2500	60
CW1-2000		630,800,1000,1250,1600,2000	65(80)
CW1-3200	Intelligent	2000,2500,3200	100

Product Feature Et Application

Foedus, Integrated "Plug-and-Play" Design

Robustus & Weatherproof clausurae

Princeps Safety & Reliability

Optimum Transformator euismod

Flexibile configurationis & Securus Sustentacionem

Applicationem Sites

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit

High/Low Voltage Prefabricated Substation
