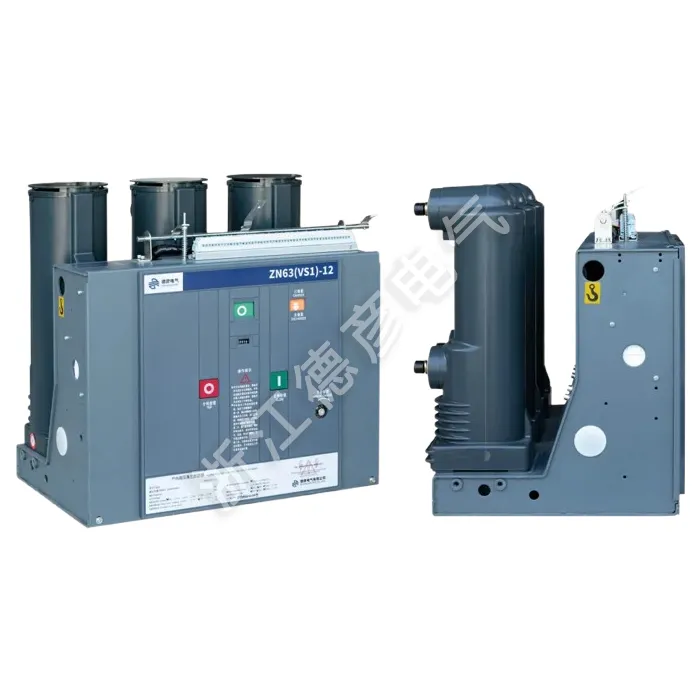

Indoor Vacuum Circuit Breaker cum Handcart

Deyan Electric est professionalis commeatus cum opulenta experientia fabricandi in adjumentis electricis industrialibus, specialiter in R&D, productione, venditionibus, et servitio adjumentorum electricorum industrialium. Praecipua eius producta includunt apparatum virtutis ut switchgear gas-insulate, anulum principales unitates, substationes compactas, et altae/low-voltage switchgear.
Indoor Vacuum Circuitus Breaker cum Handcart (draw-out) designatur ad facilem sustentationem et tentationem. Firmum ambitum tutelam praebet cum technologiae intermissionis, structurae compactae et operandi flexibili, quod specimen dat potentiae systematum distributionis et applicationum industrialium.

Mitte Inquisitionem

depictio producti

Indoor vacui circuli ruptor carrum cum carro tria phase AC 50Hz switchgear cum intentione 12kV aestimata est. Apta est ad temperantiam et tutelam applicationes in plantis industrialibus, potentiae plantae, substations et electricis facultatibus, et est specimen pro locis crebris operationibus requirentibus. Facere mechanismum integratum operantem et corporis dissolutorem. Umbraticis vacui ambitus praevaricatoris car- cani designati ut certae institutionis unitas vel instructa dis in mechanismo dedicato ad formam ductae unitatis. Vacuum umbraticis ambitus ruptor cum sectione car- marum circa sectionem principalem incorporare potest polos solidos insulatos plene encapsulatos ad magnitudinem compactam, altam firmitatem et liberam operationem consequendam. Compatibile est cum repositoria transitoriis switchgearis ut KYN28-12(GZS), dum versio fixa in XGN fixa switchgear repositoria integrari potest.

Parameter Product ( Specification )

Vide Number	Nomen		Unitas	Data
1	Rated voltage		kV	12
2	Maximum operating voltage		KV	12
3	Ratum current		A	630 1250	630 1250 1600 2000 2500 3150		1250 1600 2000 2500 3150 4000
4	Rated brevis Circuit Fractio Current (Rated Scelerisque Stabilitas Current - RMS)		KA	20/25	31.5		40
5	Rated brevis Circuit Claudendo Current (Peak)		KA	50/63	80		100
6	Rated Pecco resistere Current (Rated Dynamic Stabilitas Current - Pecco)		KA	50/63	80		100
7	4S Rated brevis Circuit sustine Current		KA	20/25	31.5		20/25
8	Rated Insulation Level	Opus intentione resiste (ante et post Rated Breaking) / I min Power Frequency intentione resiste	KV	Ground 42 (Break 48)
		Noli sustinere intentione (Ante et post Rated Breaking) / Pecco Rated fulgur impetus sustinere intentione		Ground 75 (Break 85)
9	Rated scelerisque tempus		S	4
10	Rated Sequentia Operating			Separate -0.3S - Combinatae -180S - Combinatae
11	Mechanica vita		Secundus	20000
12	Rated brevis Circuit Fractio Current Number Fractisque		Secundus	50
13	Operans Mechanismus Rated propinquus intentione (DC)		v	AC、DC 110,220
14	Operans Mechanismus Rated Opening intentione (DC)		v	AC、DC 110,220
15	Contactus gap		mm	11±1
16	Overstroke (compressionem contactum ver longitudo)		mm	3.5±0.5
17	Tres tempus claudendi et aperiendi REPENTE tempus		ms	≤2
18	Contactus currentis tempore in clausula		ms	≤2
19	Mediocris dictas celeritas		m/s*	0.9~1.2
	Mediocris celeritas claudendo		m/s*	0.5-~0.8
20	foramen tempus	Ad maximam voltage operating	S	≤0.05
21		In minimum voltage operating		≤0.08
22	Claudendo tempus		S	0.1
23	Resistentia cujusque periodi principalis ambitus		μΩ	630 ≤50		1250 ≤ 45
24	Licitum cumulativo gerunt crassitudine ad movendum et immotum contactus		mm	3

Product Feature Et Application

Handcart (Draw-out) Design

Provectus Vacuum Interruption

Consectetur Safety cum Interlocks

Vere Operating Mechanismum

Applicationem versatile

Applicationem dolor

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum circuli violator unit

Indoor Vacuum Circuit Breaker With Handcart
