Inverter pro Wire-tractio Machina

Deyan Electric est professionalis commeatus electricae industriae, solutiones certas et commodum pretiosum praebens, mercatus Europae et Americanus obtegens. Eius LNC860L Inverter pro Machina Wire-Drawing tensionem imperium et qualitatem stabilem intulit. Molem aptam ad emendum, aptat filum et funem industries, operandi stabilis praestans.

Mitte Inquisitionem

depictio producti

LNC860Lseries frequentiae convertentium dicata filo - machinis trahendis non solum omnes habent altas lineas - 8605 vectoris frequentiae convertentium, sed etiam potest consequi clausos - ansa tensio moderatio et aperta - ansa tensionis temperantiae, occurrens variis flexibus et explicandis requisitis. Habet in mathematicis exemplaribus in mathematicis tensionis ambages et subsidia calculi latae rotuli diametri. Late adhiberi potest in industriis ut filum et funem, ffoyle processus, flexus, filum metallicum - tractus, filum plasticum - tractus. Hic Inverter pro machina Wire-Dingens signum est - 485 functione communicationis instructum, et unitas braking vexillum est - instructum ad vim 22kW et infra. Potentia range: 0.75kW-400kW-380V.

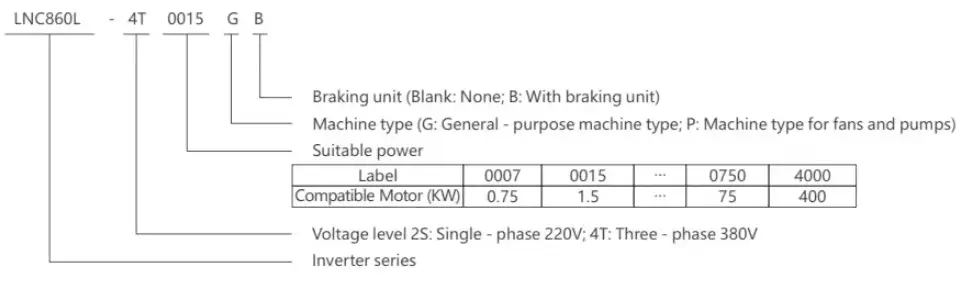

Exemplar significatio

LNC860L Inverter for Wire-Drawing Machine

Product features

Vector imperium magnum, magnum low - frequentiam torque, et stabilis output

-Supportat varias encoders: ABZ incrementales, U incrementales et resolver

▲ Lata voltage input, automatic output ordinatio voltage (AR), nulla shutdown in momentaneis potentiae amissione, cum aptabilitate fortius

Supporta tensio tensio clausa et aperta - loop tensio imperium

Built - in mathematicis exemplar pro tensione coercuit imperium sustinet calculi diametri latis calculi

Initium lenis, operatio stabilis, et constans contentio

▲Automatic filum - deprehensio confractus, automatic inertiae compensatio

Winding and rudens system combination, DC bus communicare potest, energiae electricae salvificae

▲Built - in algorithm provecta PID, cum responsione celeri, aptabilitas fortis, et facilis debugging.

▲16 - celeritas gradus temperantiae, simplex PLC multam obtinet functionem logicam potestatem ut leo, constans - celeritas, directio - occasus.

▲Embedded RS485 communicationis subsidia interface Modbus protocol

▲ Multiplices tutelae functiones: super - intentione, super - current, onero, super - calore, etc

Nameplate instructions

EXEMPLUM:	LNC860L-4T0037GB/4T0055PB
Potestas:	3.7KW 9A/5.5KW 13A
INPUT:	3PH AC380V 50HZ/60HZ
REFERO:	3PH ACOV-380V OHZ-400HZ
S.N:	Barcode

Index machinarum genera

Saepe converter exemplum	Facultas potentiae (kVA)	Input current (A)	Output current (A)	Lorem motricium (KW)
Unius temporis copia: 220V±15%,50/60Hz
LNC860L-2S0007GB	1.5	8.2	5.0	0.75
LNC860L-2S0015GB	3.0	14.0	7.0	1.5
LNC860L-2S0022GB	4.0	23.0	9.6	2.2
Tres phases potentia supplet: 380V±15%,50/60Hz
LNC860L-4T0007GB	1.5	3.4	2.1	0.75
LNC860L-4T0015GB	3.0	5.0	3.8	1.5
LNC860L-4T0022GB	4.0	5.8	5.1	2.2
LNC860L-4T0037GB	5.9	10.5	9	3.7
LNC860L-4T0055GB	8.9	14.6	13	5.5
LNC860L-4T0075GB	11	20.5	17	7.5
LNC860L-4T0110GB	17	26	25	11
LNC860L-4T0150GB	21	35	32	15
LNC860L-4T0185GB	24	38.5	37	18.5
LNC860L-4T0220GB	30	46.5	45	22
LNC860L-4T0300G	40	62	60	30
LNC860L-4T0370G	57	76	75	37
LNC860L-4T0450G	69	92	91	45
LNC860L-4T0550G	85	113	112	55
LNC860L-4T0750G	114	157	150	75
LNC860L-4T0900G	134	180	176	90
LNC860L-4T1100G	160	214	210	110
LNC860L-4T1320G	192	256	253	132
LNC860L-4T1600G	231	307	304	160
LNC860L-4T2000G	250	385	377	200
LNC860L-4T2200G	280	430	426	220
LNC860L-4T2500G	355	441	465	250
LNC860L-4T2800G	396	495	520	280
LNC860L-4T3150G	445	565	585	315
LNC860L-4T3550G	500	617	650	355
LNC860L-4T4000G	565	687	725	400

Specificationes technicae

Item		Specification
Imperium characteres	Output frequency	0-500Hz
	Portitorem frequency	0.8kHz~ 12kHz Tabellarius frequentia statim adaequari potest secundum notas onus
	Output frequency resolutio	0.01Hz
	Imperium modus	Open -loop vector control(SVC) V/F
	Torque characteres	Cum emen- datione torque et emissione emissi, initium torques ad 150% ad 0.5Hz pervenire potest
	Torque imperium accuracy	±5%(FVC)
	Armen praeventionis actio iudicium	Pone apercentage de current rated, vndique a 20% ad CCL%
	Celeritas ordinatio range	1:100(SVC) 1: 1000(FVC)
	Celeritas stabilisation accuracy	±0.5%(SVC) ± 0.02%(FVC)
	ONERO facultatem	CL% de rated output current pro uno momento
	V/F curva	Quattuor modos: lineares, multi-punctum; completum V / fseparation; incompletum V / f separationem
	Acceleratio et retardatio curvae	Modi lineares accelerationis et retardationis curvae; Quatuor accelerationis et retardationis temporibus, acceleratio et retardatio temporis range 0.1 ~6500.0s
	DC braking	DC braking frequency: 0.00Hz~maximam frequentiam.Braking time:0.0s～60.0s, actio braking current valorem: 0.0%～100.0%
	Jog imperium	Jog frequentia range:0.00Hz~maxima frequentia, quatii acceleratio et retardatio temporis 0.1s~6500.0s
	Simple PLC, multi gradus velocitatis operationis	Ad celeritatem gradus XVI-gradus operationem perfici potest per constructum-in PLC vel imperium terminales
	Inaedificata PID	Facile cognosci potest processum-control clausus-lops
	Automatic ordinatio intentionis (AVR)	Cum mutationes intentionis emissae, statim potest continuam output voltage tenere
	Ieiunium current-terminus munus	Peccata nimis magna quam maxime extenuant, et operationem normalem frequentiae converter tueantur
Operating characteres	Operans imperium channel	Tres canales: a panel operatione donati, a moderatoris a moderantibus, a porta communicationis serialis donati. Variis modis mutari potest.
	Frequentia fons	Decem fontes frequentiae: nodi a tabella data, tabula operationis data, intentione analogo donata, a RS485 communicatione data, quae varie permutari possunt.
	Auxiliaris frequentiae fons	Decem frequentiae auxiliariorum fontes. Potest mollius consequi frequentiam auxiliarem subtiliter et frequentiam synthesin
	Inputterminals	Sex input terminales digitales, quarum una uti potest ut alta velocitate pulsus input. Duae canales input: Al1: input range0~+10V,Al2:input range0~+10V/0-20mA
	Output terminals	Una summus celeritas venarum output terminalis, outputatio quadrati undae significationum ab OkHz~50kHz, quod potest scire output quantitatum physicarum ut frequentiae et output frequentiae One digital output terminal One Nullam output terminalem duo analoga output terminales: OV~10V/0-20mA, quod significare potest output de output frequentiae / current/voltage/ velocitatis mandatum/rotationum
	Munus tutelae	Motorium breve deprehensio in potestate initus et outputa-dispendii tutelae, super-current tutela, super-voltatio tutela, sub intentione tutela, super caloris munimentum oneris tutelae, etc.
Eironment	Applicationem loco	Intus, non directe soli luci expositae, sine pulvere, vapores exedunt, vapores flammabiles, vapores olei, vapor aquae, stillantia aquae vel salis, etc.
	altitudo	Minus quam 1000m
	Ambiens humiditas	-10℃~+40℃ (quando ambientium temperatus est inter 40℃~50℃, operatio requiritur)
	Umor	Minus quam XCV% RH, sine guttae condensationis
	Vibratio	Minus quam 5.9m/s*(0.6g)
	Repono temperatus	-20℃~+60℃
