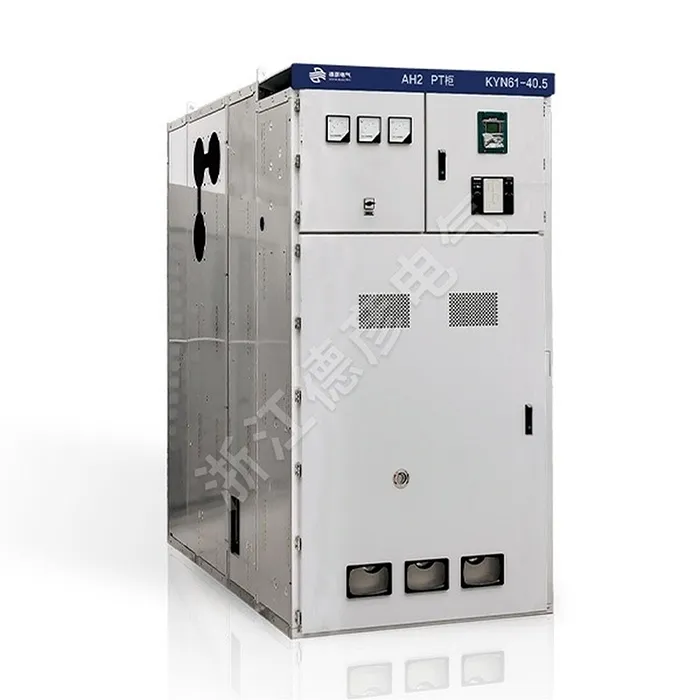

AC Metal-Clad Withdrawable Switchgear

Deyan Electric professio est elit electrica industrialis cum R&D integratis, productionis et servitii. Haec AC Metallica Recessus Switchgear maximam salutem ac fidem efficit ut distributio potentiae mediae voltages. Eius consilium modulari, subtractionis faciliorem sustentationem permittit, ac praevaricatores ambitus experiendo sine totius systematis viribus de-operando. Specimen ad postulandas industriales et utilitates applicationes, superiores personas tutelam et continuitatem operationalem praebet.

Mitte Inquisitionem

depictio producti

In AC Metallica-Clad Switchgear (infra post switchgear) appellatum est tria phase AC 50Hz, aestimavit intentione 40.5kV indoor integra distributione unit. Potentia electrica in plantis, substationibus, et inceptis fodiendarum potentiarum recipiendis et distribuendis destinatur. Switchgear AC metallo-Clad Withdrawable functiones fungitur ut ambitus imperium, tutelam et vigilantiam, et etiam apta ad loca frequentem operationem requirunt. The AC Metal-Clad Withdrawable Switchgear obsequitur signis inclusis GB/T11022-1999, GB3906-1991, and DL404-1997.

Parameter Product ( Specification )

Nomen	Unitas	numeri
Rated voltage	kV	40.5
Ratum current	A	1250 1600 2000
Rated frequency	Hz	50
Rated breve tempus sustine Current	KA	20 25 31.5
Rated Pecco sustine Current	KA	50 63 80
Rated Power Frequency resistendi intentione	KV	95/1min
Rated ignis impetus sustinere intentione	KV	185
Rated brevis Circuit Duration	S	4
Praesidium Rating		IP3X

Vacuum Circuit Breaker Key Technical Parameters

Nomen	Unitas	numeri
Rated voltage	KV	40.5
Rated frequency	HZ	50
Rated Power Frequency resistendi intentione	KV	95/1min
Rated ignis impetus sustinere intentione	KV	185
Ratum current	A	1250 1600 2000
Rated breve tempus sustine Current	KA	20 25 31.5
Rated breve tempus Fractio Current	KA	20 25 31.5
Rated Pecco sustine Current	KA	50 63 80
Rated brevis Circuit Duration	ms	4
foramen tempus	ms	30 ≤ t≤ 60
Claudendo tempus	s	50 ≤ t≤ 100
Rated brevis Circuit Fractio Current Cycles	Secundus	20
Mechanica vita	Secundus	10000
Praesidium Rating		IP43

Product Feature Et Application

Plena CATAFRACTATUS Praesidium

Retrahitur Components

Compartmentalized Design

Consectetur Safety Interlocks

Princeps Reliability & Flexibility

Applicationem Sites

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit

AC Metal-Clad Withdrawable Switchgear
