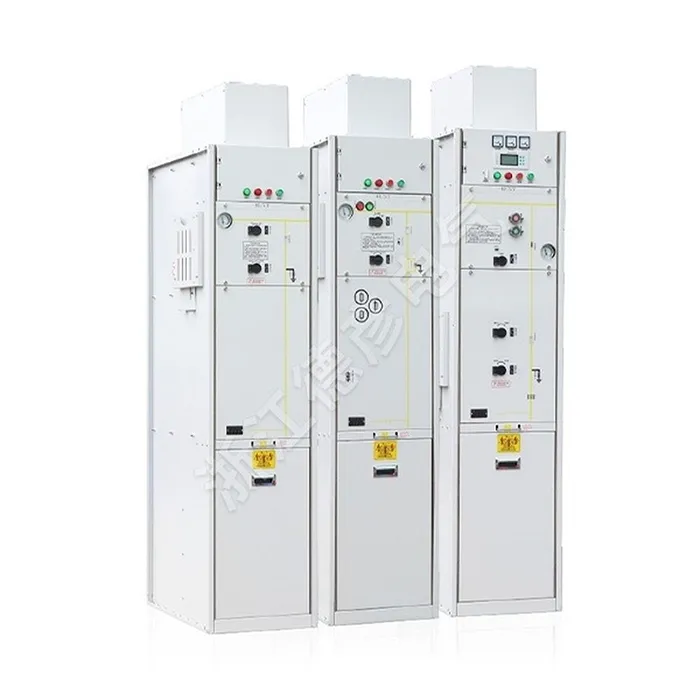

Annulus Main Unit Switchgear

Deyan Electric professio est elit electrica industrialis cum R&D integratis, productionis et servitii. Annulus principalis Unit switchgear pactus est, signatus secundarius distributio unitatis pro retiacula media-voltage. Certam vim praestat copia efficiens ut onus efficiens mutandi et culpae solitudo in "anulo" configuratione, outages obscuratis. Eius notae clavis includunt consilium modulari, SF6 vel insulationem vacuum, et salus amplificatur ad applicationes urbanas et industriales.

Mitte Inquisitionem

depictio producti

Annulus principalis unitas switchgear Product Introductio praebet optiones mensurae 10 schematismi, occurrens applicationis requisita maxime 36-40.5kV retiacula distributionis. Ut pacti switchgear, XGN-40.5 efficit virtualiter quamlibet coniunctionem electronicarum iunctarum functionum.

Anulus principalis unitas lineamenta switchgear interfacies et interfaces usorum tradens solutionem mutandi integram pro reticulis 36-40.5kV secundae distributionis.

Cubiculum gasi eius immaculatum ferro SF6 gasi repletum est, signantes omnino omnes partes vivas et virgas ab ambitu externo. Haec ratio plene obsignata protegit virgas internas et omnes partes vivunt ab externis mutationibus environmental, ut alta fides, curatores salutis, ac virtualiter sustentationem liberam operationem.

Parameter Product ( Specification )

Vacuum Switchgear Main Technical Parameters

Nomen	Unitas	numeri
Rated voltage	kV	40.5
Ratum current	A	1250 1600 2000
Rated frequency	Hz	50
Rated breve tempus sustine Current	KA	20 25 31.5
Rated Pecco sustine Current	KA	50 63 80
Rated Power Frequency resistendi intentione	KV	95/1min
Rated ignis impetus sustinere intentione	KV	185
Rated brevis Circuit Duration	S	4
Praesidium Rating		IP3X

Vacuum Circuit Breaker Key Technical Parameters

Nomen	Unitas	numeri
Rated voltage	KV	40.5
Rated frequency	HZ	50
Rated Power Frequency resistendi intentione	KV	95/1min
Rated ignis impetus sustinere intentione	KV	185
Ratum current	A	1250 1600 2000
Rated breve tempus sustine Current	KA	20 25 31.5
Rated breve tempus Fractio Current	KA	20 25 31.5
Rated Pecco sustine Current	KA	50 63 80
Rated brevis Circuit Duration	ms	4
foramen tempus	ms	30 ≤ t≤ 60
Claudendo tempus	s	50 ≤ t≤ 100
Rated brevis Circuit Fractio Current Cycles	Secundus	20
Mechanica vita	Secundus	10000
Praesidium Rating		IP43

Product Feature Et Application

Maxime Safety & personas Praesidium

Singularis Reliability & Environmental Repugnantia

Compact & Space-Saving Design

Operational Flexibility & Future-Proofing

Applicationem Sites

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D. Direct funem nexum unitatis

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit

Productio details

Ring Main Unit Switchgear
