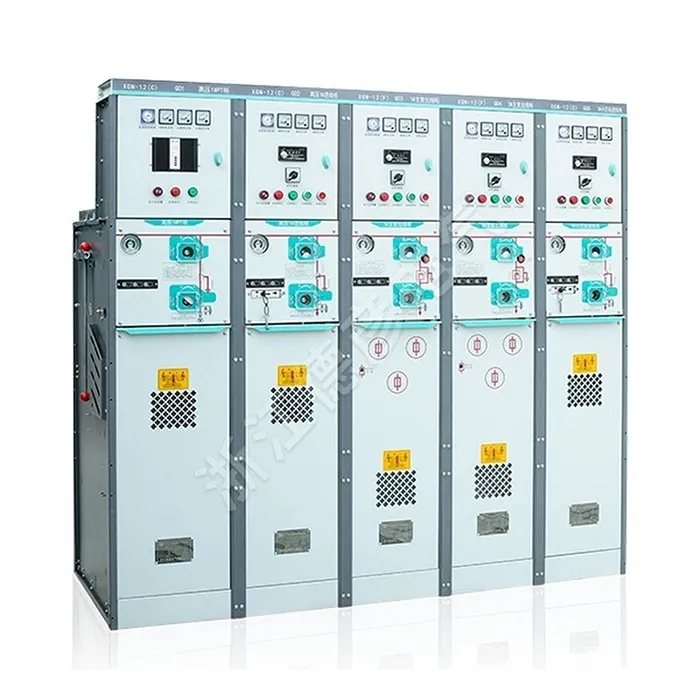

Metallum inclusum Gas-Insulated Ring Main Unit

Deyan Electric professio est elit electrica industrialis cum R&D integratis, productionis et servitii. Metallum Gas-insulatum Ringum principale Unitum compactum, fixum, genus, metallo inclusum, switchgear utens SF6 gasi ad superiorem velit et arcum extinctionem. Mentis inclusum Gas-insulatum Ring Main Unit destinatur pro certa potestate in 10-12kV retis secundariis distributio. Obsignatum, liberum consilium sustentationem praestat salutem ac stabilitatem, id facit specimen pro praediis urbanis, praediis industrialibus et aliis applicationibus spatio-consciis quae altam observantiam et resistentiam environmental requirunt.

Mitte Inquisitionem

depictio producti

Metallum inclusum Gas-insulatum Ring Main Unit est SF6 gas insulatum, metallum inclusum switchgear cum busbar communi. Inclusum gas-insulatum Ring Main Unit configurari potest cum modulis inclusis onus switch unitates, onus switch-fuse junctionis unitates, vacuum circa ruptor unitatum, et busbarum cibarium in unitatibus. Seriem technologiarum et materiarum provectarum adhibens, praestantissimas electricas et mechanicas effectus cum minimis momenti environmental et climaticis tradit. Foedus in magnitudine. Gas-insulatae Ringo Main Unit offert facilem institutionem, opportunam operationem, sustentationem, liberam operationem, ac flexibilem optionum conformationem. Manifestum, intuitivum consilium efficit operationem simplicem et directam. Princeps feeder wiring capacitatem Features, varias systemata wiring accommodat.

Parameter Product ( Specification )

Project		OMNIBUS C	OMNIBUS F	OMNIBUS V		OMNIBUS CB
		Onus switch	Compositum Electrical Equipment	Vacuum Switch	Solitudo / Grounding SWITCH	Vacuum Circuit Breaker	Solitudo / Grounding SWITCH
Rated voltage	KV	12	12	12	12	12	12
Rated frequency	Hz	50	50	50	50	50	50
Virtus Frequency resistere intentione (Phase-ad-Phase / Phase-ad-Erat)	kV	42/48	42/48	42/48	42/48	42/48	42/48
Fulmen impetus sustinere voltage	KV	75/85	75/85	75/85	75/85	75/85	75/85
Ratum current	A	630	recordum	630		1250/630
Rated clausa-loop fractionis current	A	630
Rated cable dato et praevaricationem Current	A	135/135
Rated brevis Circuit propinquus Current (Peak)		50	80
Rated Pecco sustine Current	KA	50
Rated breve tempus sustine Current	kA/3s	20
Rated brevis Circuit Fractio Current	KA		31..5	20
Rated Transfer Current	A		1750
Maxime current rating pro fuse	A		125
resistentia loop	Ω	≤300	≤600
Mechanica vita	secundo	5000	3000	5000	2000	5000	5000

Product Feature Et Application

Excogitata Gas Insulation

Plene signati clausurae

Foedus & Spatium salutaris

consectetur Safety

Fundo Service Vita & Reliability

Applicationem Sites

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit

Metal-Enclosed Gas-Insulated Ring Main Unit
