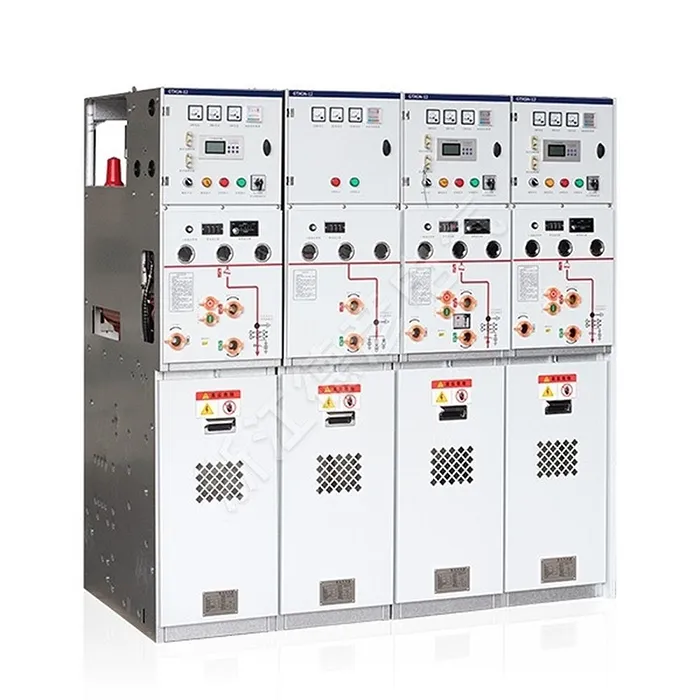

AC Metal-Insulated Ring Main Switchgear

Deyan Electric professio est elit electrica industrialis cum R&D integratis, productionis et servitii. In AC metallo-insulato Ringo Main Switchgear pactus est, unitas aeris insulatae pro certa distributione potentiae secundariae 10-12kV. Designatum anulum systematum principale, onus mutandi, culpa solitudo, et potestas continua copia tutatur. Eius consilium robustum, modulari facilem sustentationem praebet et bene apta est pro craticulis urbanis, praediis industrialibus, et complexionibus commercialibus quae necessaria sunt ac efficaces retis effectus.

Mitte Inquisitionem

depictio producti

AC Metal-Insulatum Ring Main Switchgear est solutionem liberam plene insulatam, obsignatam et conservatam. Haec unitas omnes partes vivas in unam clausuram epoxy-figuratam integrat, plenam immunitatem in ambitus asperos praestans. Certus Ring Main Unit specimen est ad diversas applicationes ab urbanis gridibus ad sites quaerendas sicut cuniculos et aliquet nisl. Cum suo pacto et tuto consilio, haec solida-insulata switchgear praestat operativam fidem et salutem.

Parameter Product ( Specification )

Project	Unitas	Morbi laoreet
exercitatione
Rated voltage	kV	12
Rated frequency	Hz	50
Potestas Frequency sustinere intentionem	kV/min	42/48
Fulmen impulsum voltage	kV	75/85
Arcus Duration	S	≥0.5
IP Rating for Components (Excluding Metering Cabinets)		IP67
Praesidio Rating claudetur		IP4X
Compartment Protection Rating		IP2X
Operating Power Voltage	V	DC24、48、110、220
Operating Power Voltage	V	AC110、220
Ratio Busbar
Ratum current	A	630 (1250)
Rated breve tempus sustine Current	KA/s	20/4(25/4)
Rated Pecco sustine Current	KA	50(63)
Rated Pecco sustine Current	KA	50
Onus SWITCH Unit
Ratum current	A	630
Rated brevis Circuit Propinquus Current	KA	50
Rated breve tempus sustine Current	KA/S	20/4
Onus SWITCH PB	Secundus
Electrical Life of Load Switches	secundo	E3
Partialis officii	pc*	≤5
Circuit Breaker Unit
Ratum current	A	630 (1250)
Rated brevis Circuit Fractio Current	KA	20(25)

Project	Unitas	Morbi laoreet
Rated brevis Circuit Propinquus Current	KA	50(63)
Rated breve tempus sustine Current	KA/S	20/4(25/4)
Mechanica Vita Circuit Breakers	secundo	20000
Servitium vitae ambitus praevaricatores	secundo	E2
Rated Sequentia Operating		0-0.3s-CO-180s-CO
Partialis officii	PC	≤5
Load SWITCH-Fuse Compositum Electrical Unit
Rated Current (Maximum)	A	200
Rated brevis Circuit Fractio Current	KA	31.5
Rated Current (Maximum)	KA	80
Partialis officii	PC	3150
Disconnect switch
Ratum current	A	630/1250
Rated breve tempus sustine Current	KA	20/25
Rated breve tempus durationis	S	4
Rated Pecco sustine Current	KA	50/63
Mechanica vita	Secundus	3000
Grounding SWITCH
Ratum current	A	630/1250
Rated breve tempus sustine Current	K	20/25
Rated breve tempus durationis	S	4
Rated Pecco sustine Current	k	50/63
Rated brevis Circuit propinquus Current (Peak)	KA	50
Rated brevis Circuit Propinquus Current Cycles	Secundus	2
Mechanica vita	Secundus	3000

Product Feature Et Application

Applicationem Sites

Solidum Insulation pro Consectetur Safety & Eco-amicitia

Compact & Space-Saving Design

Valde PRAEIUDICATUS in adversis conditionibus

Tutela Free Operatio

Flexibile & Expandable configurationis

Foedus secundarium substations

"Parvus industriae et fodiendi conatibus"

Ventus potentia plantae

Hotels, malla, officia, aedificia, commercial centra, etc.

C. Lond switch unitas

D-Direct funem nexum unit

De- Direct funem nexum unitatis cum grounding switch

F- Load switch-fuse combination unit

V. Vacuum ambitus ruptor unit

AC Metal-Insulated Ring Main Switchgear
